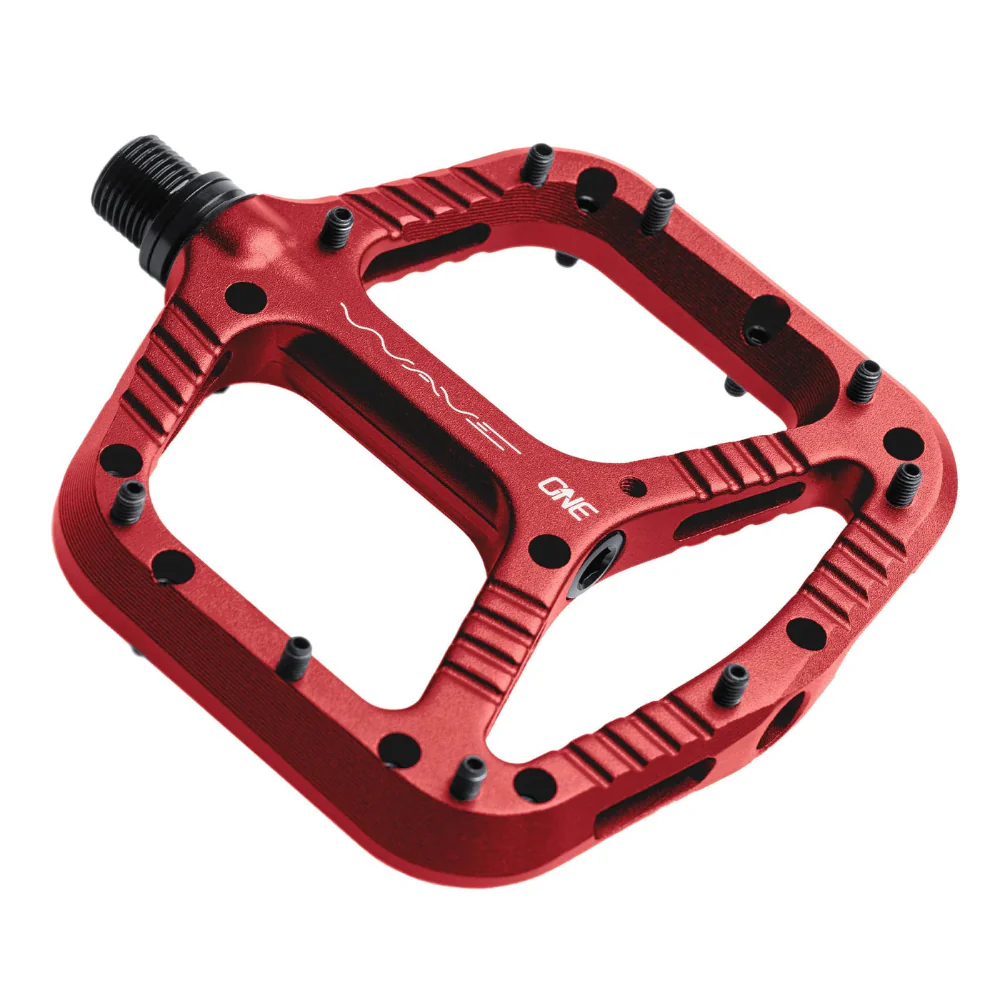

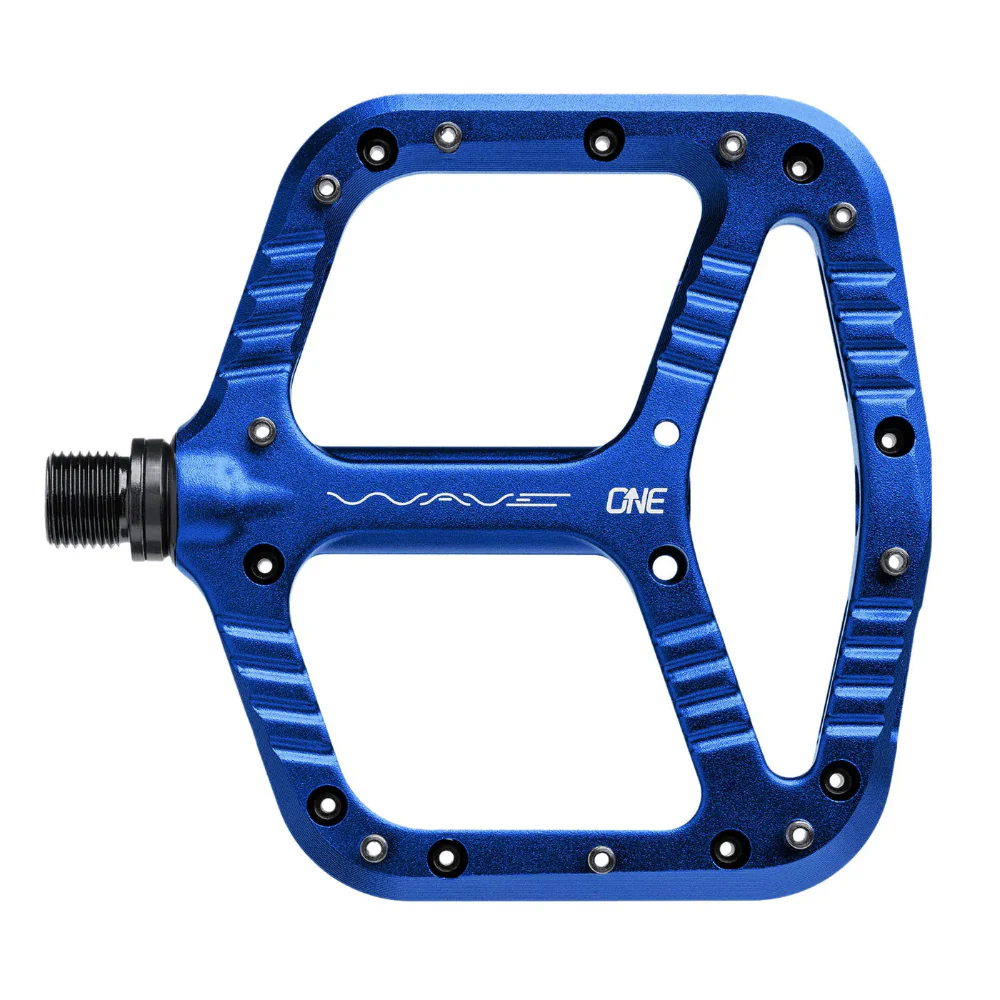

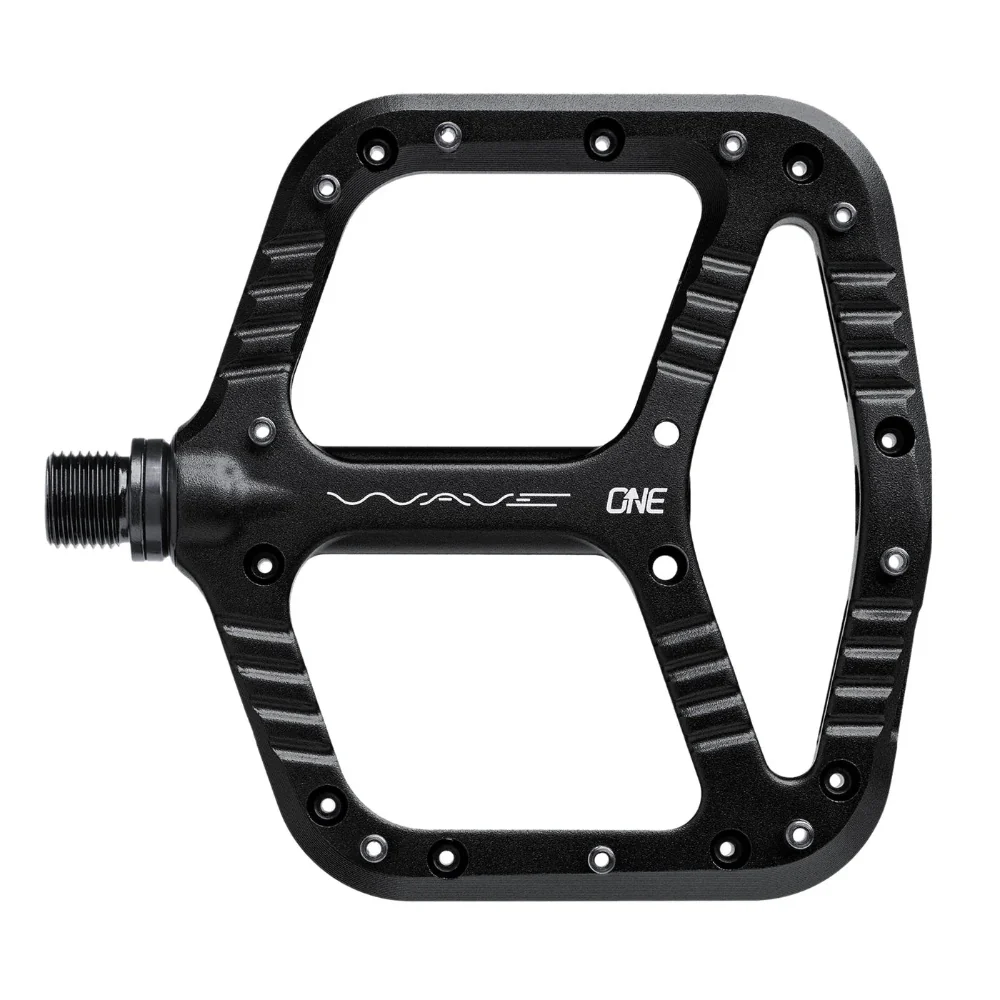

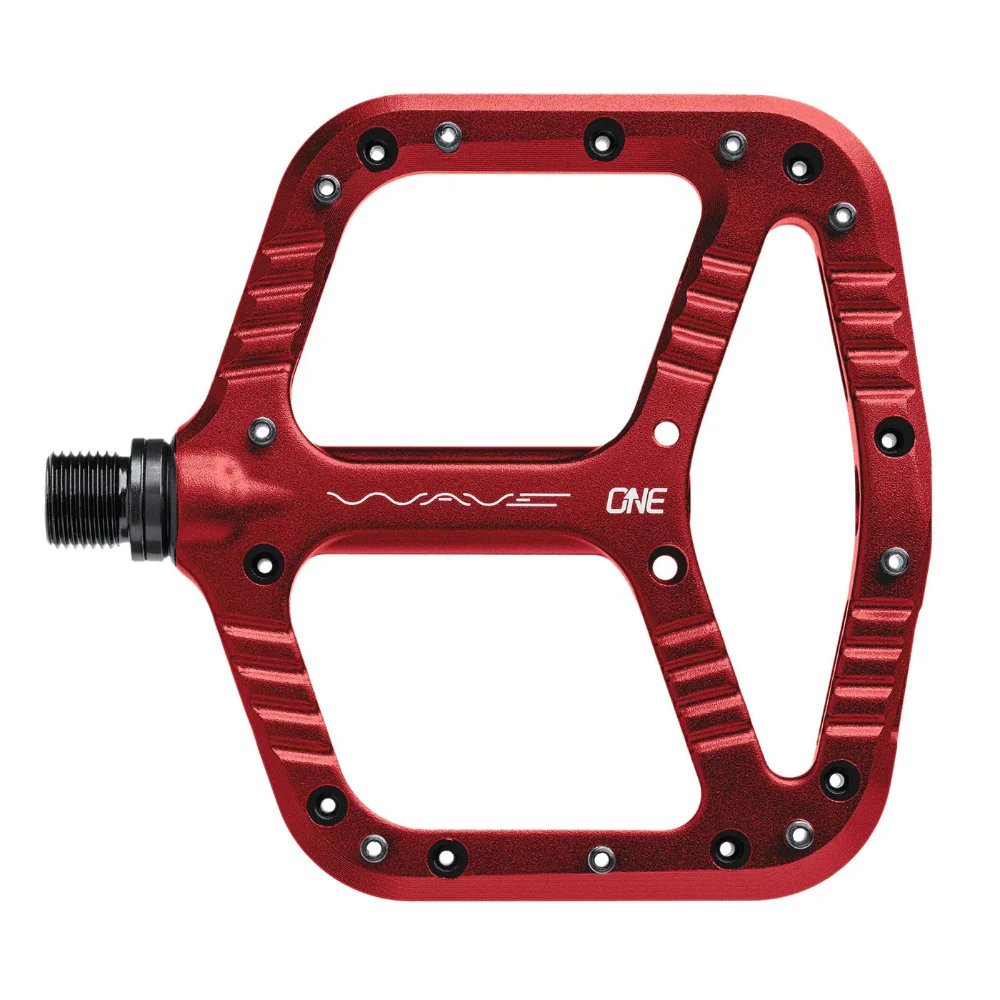

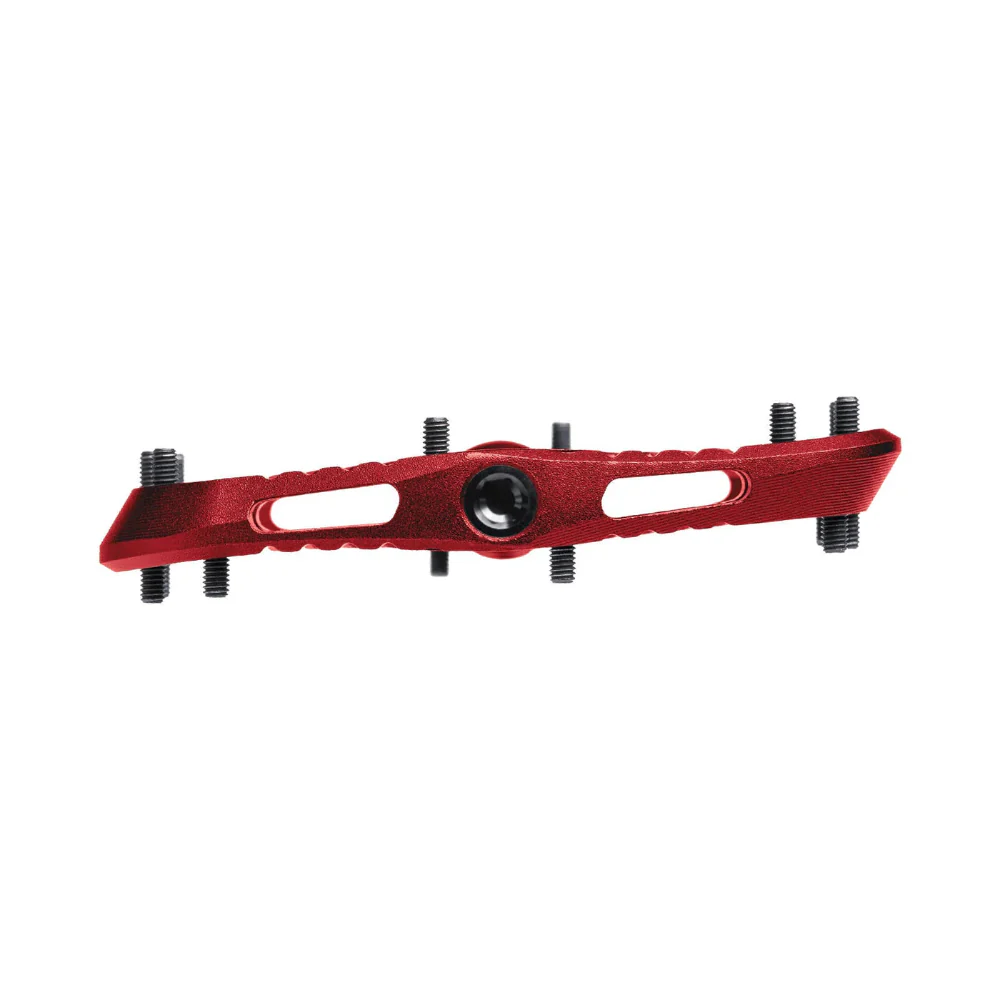

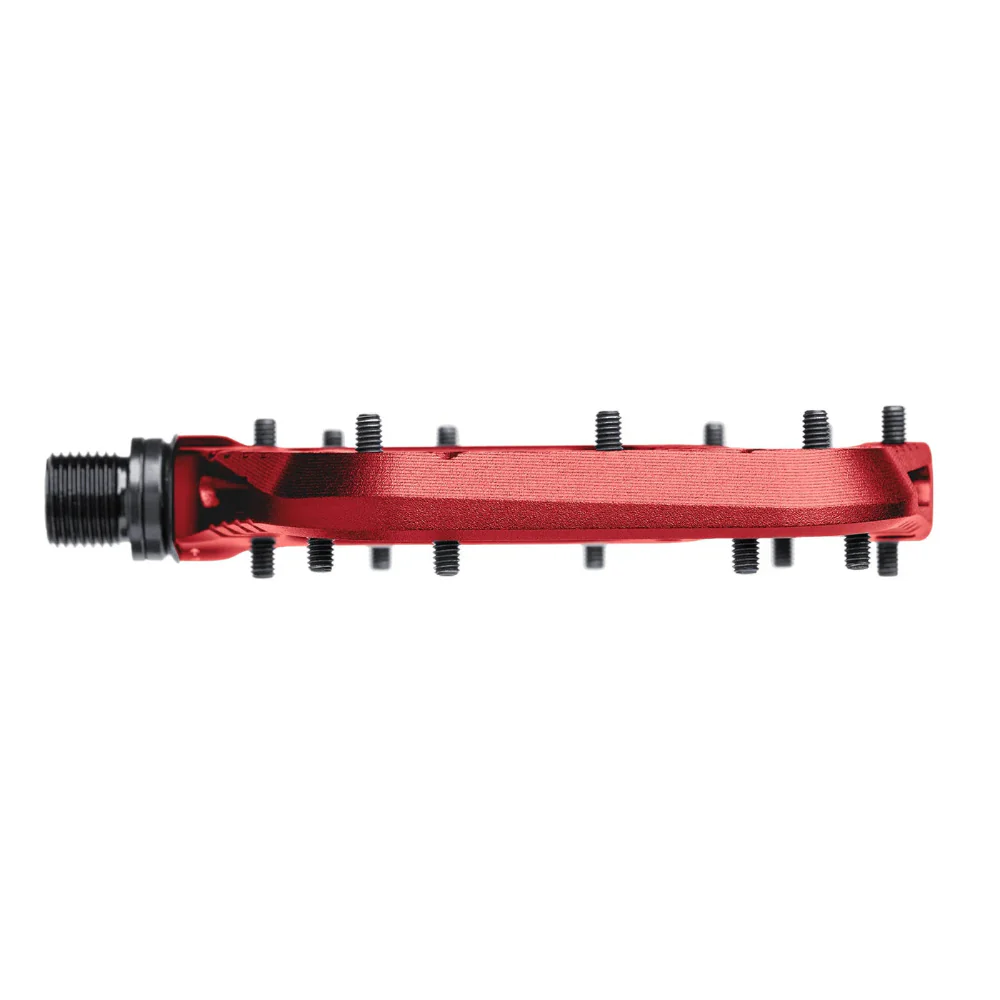

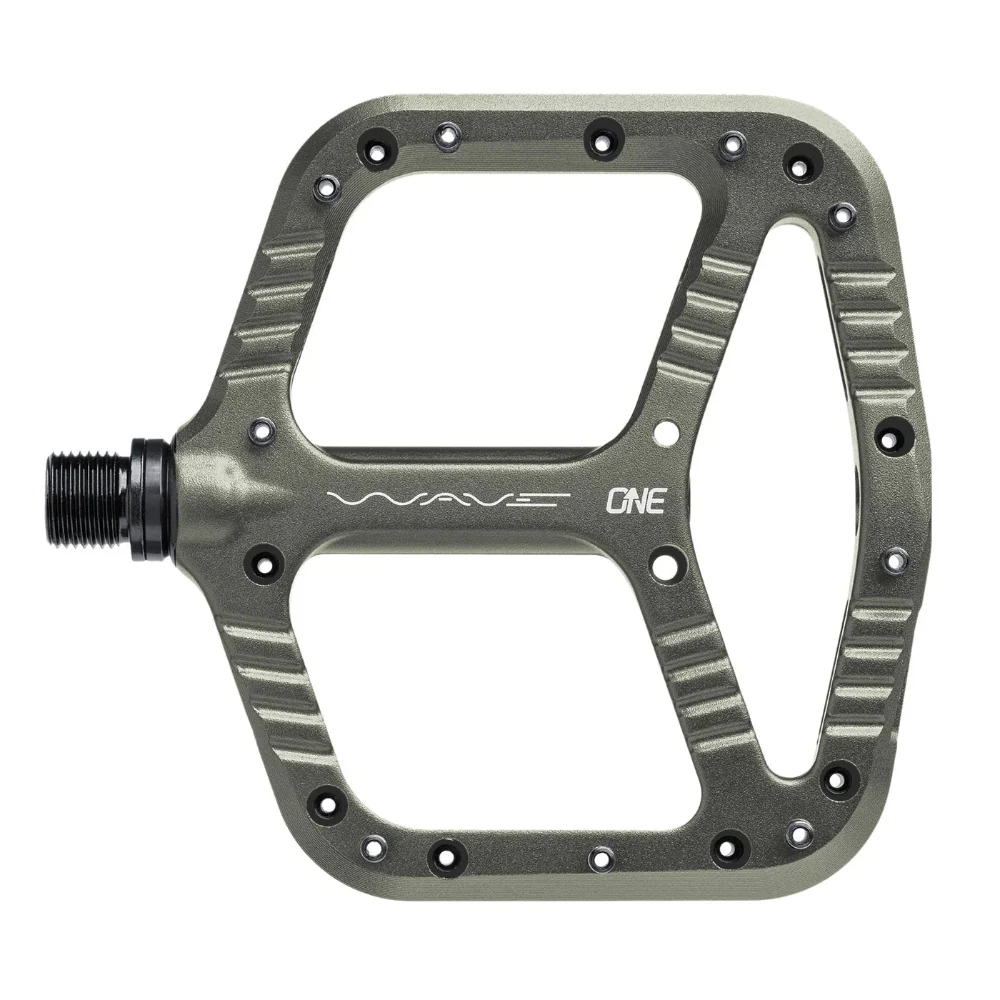

Wave Pedals
Get ultimate grip and bike control with our innovative Wave profile.
Most flat pedal profiles are either convex or concave. Wave is a patented hybrid convex/concave shape that promotes an aggressive heels-dropped riding position and gives you a more natural pedal stroke when seated. With Wave, your foot is being held by the shape of the pedal - not just the pins.
It’s time to ride the Wave.
FEATURES:
- Weight: 355g (Pair)
- Thickness: Axle 14.2mm / Edges 11.5mm
- Size: 107mm x 110mm (W x L)
- Bearing configuration: Inboard igus™ Bushing and 3x outboard cartridge bearings
- Body: Forged and CNC’d 6061 Aluminum Body
- Axle: Chromoly Steel with Black ED coating
- Pins: M4 Hollow Pin 10 x pins per side (self-cleaning hex through hole)
- Convex + Concave = Wave: The front half of the pedal has a concave profile that hugs the ball of your foot for unmatched grip. The back half of the pedal is sloped to promote an aggressive heels-down foot position for more power and control.
- Angled Pins: Because the Wave design naturally encourages your heels to drop, the pins are installed at an angle to be vertical when riding. This leverages the Wave profile and increases grip - without the need for longer pins.
- DH-Rated Axle: The Wave pedal uses a proven axle, bushing and bearing configuration for improved reliability — strong enough for all types of riding.
- 2 year manufacturer warranty.
Original: $180.71
-70%$180.71
$54.21Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Get ultimate grip and bike control with our innovative Wave profile.
Most flat pedal profiles are either convex or concave. Wave is a patented hybrid convex/concave shape that promotes an aggressive heels-dropped riding position and gives you a more natural pedal stroke when seated. With Wave, your foot is being held by the shape of the pedal - not just the pins.
It’s time to ride the Wave.
FEATURES:
- Weight: 355g (Pair)
- Thickness: Axle 14.2mm / Edges 11.5mm
- Size: 107mm x 110mm (W x L)
- Bearing configuration: Inboard igus™ Bushing and 3x outboard cartridge bearings
- Body: Forged and CNC’d 6061 Aluminum Body
- Axle: Chromoly Steel with Black ED coating
- Pins: M4 Hollow Pin 10 x pins per side (self-cleaning hex through hole)
- Convex + Concave = Wave: The front half of the pedal has a concave profile that hugs the ball of your foot for unmatched grip. The back half of the pedal is sloped to promote an aggressive heels-down foot position for more power and control.
- Angled Pins: Because the Wave design naturally encourages your heels to drop, the pins are installed at an angle to be vertical when riding. This leverages the Wave profile and increases grip - without the need for longer pins.
- DH-Rated Axle: The Wave pedal uses a proven axle, bushing and bearing configuration for improved reliability — strong enough for all types of riding.
- 2 year manufacturer warranty.
